The occurrence of mixed dementias is significantly related to the aging process.1 Their brain pathology accounts for most cases in community-dwelling older persons.2 Mixed dementias are clinically under-recognised and need neuropathological confirmation.3 The most frequent types are those composed of Alzheimer’s dementia (AD) associated with cerebral amyloid angiopathy (CAA), cerebral arteriosclerotic micro-angiopathy (CAMA), and Lewy body disease (LBD).4,5 AD-CAA is by far the most frequent association,6 while CAA mainly involves the leptomeninges and the cerebral cortex, and CAMA mainly affects the basal ganglia with white matter changes.7 Cortical micro-infarcts are not only frequent in AD-CAA but also in LBD.8,9 Additionally, cortical micro-bleeds are increased in the mixed dementia diseases.10
Post-mortem magnetic resonance imaging (MRI) is an additional tool of the neuropathological examination of neurodegenerative and cerebrovascular diseases, as it allows quantification and location of white matter changes, cortical micro-infarcts, cortical micro-bleeds and iron deposits, and is able to detect the areas of cortical superficial siderosis.11 The present neuropathological study with 7.0-tesla MRI compares the impact and the distribution of cerebrovascular lesions between unmixed AD brains to those with the different types of associated disorders.
Material and methods
A total of 80 patients with unmixed and mixed AD, who had been followed up at the Lille University Hospital, underwent an autopsy. Twenty-six unmixed AD brains were compared to 12 associated with LBD, eight with CAMA and 24 with CAA. Mean age, gender distribution and the different types of cerebrovascular lesions were compared.
The standard diagnostic procedure consisted of examining samples from the primary motor cortex, the associated frontal, temporal and parietal cortex, the primary and secondary visual cortex, the cingulate gyrus, the basal nucleus of Meynert, the amygdaloid body, the hippocampus, basal ganglia, mesencephalon, pons, medulla and cerebellum. Slides from paraffin embedded sections were stained with haematoxylin-eosin, luxol fast blue and Perl. Immune-staining for protein tau, β-amyloid, α-synuclein, prion protein, TDP-43 and ubiquitin was also performed.
AD features were classified according to the Braak and Braak criteria.12 The main diagnosis of AD was retained when stages V and VI were reached. The criteria of a consensus protocol were used to assess the severity of CAA.13 The degree of CAA was evaluated semi-quantitatively on four cortical samples and graded from 0–3. Only brains with grade 3 in all samples were considered to have CAA. LBD was diagnosed according to the report of the consortium on DLB international workshop.14 Staging of the CAMA pathology was performed according to the recommendations of the vascular dementia group.15
In addition to the detection of macroscopic visible lesions such as haematomas and territorial and lacunar infarcts, a whole coronal section of a cerebral hemisphere, at the level of the mamillary body, was taken for semi-quantitative microscopic evaluation of the small cerebrovascular lesions such as white matter changes, cortical micro-bleeds, cortical micro-infarcts, and lacunes. The mean values of white matter changes were the average of the ranking scores: no change (R0), a few isolated (R1), frequently scattered in the corona radiata (R2), and forming confluent lesions (R3) of myelin and axonal loss. For the other cerebrovascular lesions, their mean values corresponded to their average numbers in the individual brains.
Magnetic resonance image examination
A 7.0-tesla MRI (Bruker BioSpin SA, Ettlingen, Germany) was used with an issuer-receiver cylinder coil of 72 mm inner diameter (Ettlingen, Germany), according to a previously described method.16 Three coronal sections of a cerebral hemisphere were submitted to SPIN ECHO T2 and T2* MRI sequences: a frontal, a central and a parieto-occipital one. The ranking scores of severity of white matter changes were evaluated separately on different brain sections using the same method as was performed on the neuropathological section. The number of the other small cerebrovascular lesions was also determined by consensus evaluation. The incidence of cortical superficial siderosis, not associated to a visible underlying lesion, was also evaluated on the T2* sequence.17
Univariate comparisons of unpaired groups were performed with the Fisher’s exact test for categorical data. The non-parametric Mann-Whitney U-test was used to compare continuous variables. The significance level, two-tailed, was set at ≤0.05 for moderately significant, at ≤0.01 for significant and at ≤0.001 for highly significant.

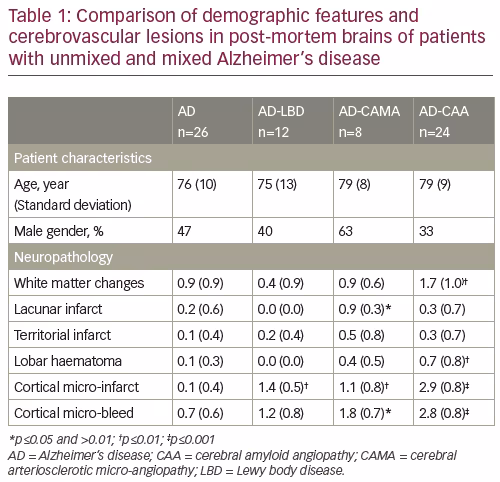

Age and gender distribution were not statistically different between the unmixed and mixed dementia groups. On neuropathological examination, patients with AD-CAA had the most severe white matter changes and the highest incidence of lobar haematomas, cortical micro-infarcts and cortical micro-bleeds compared to the unmixed group. Patients with AD-CAMA had a significantly higher number of lacunes and an increase in cortical micro-infarcts and cortical micro-bleeds. In the AD-LBD brains only an increase of cortical micro-infarcts was observed compared to the unmixed group (Table 1).

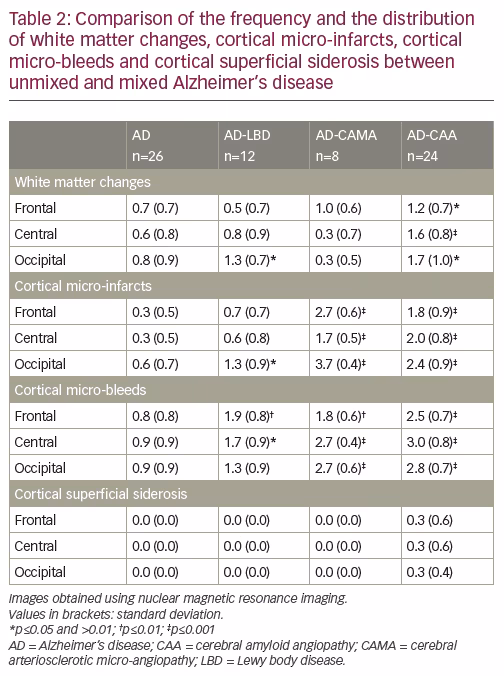

On MRI examination, white matter changes were only increased in the AD-CAA group, mainly in the central section. Cortical micro-infarcts were significantly more present in all the sections of the AD-CAA and AD-CAMA groups. In the AD-LBD, brains they were only moderately more common in the occipital section, compared to the unmixed AD group (Figure 1). Cortical micro-bleeds were significantly more frequent in all the sections of AD-CAA and AD-CAMA brains (Figure 2), while in the AD-LBD group they occurred more frequently in the frontal section and, to a lesser degree, in the central one. Although cortical superficial siderosis was only observed in the AD-CAA brains (Figure 3) but not in the other mixed and unmixed AD diseases, the incidence was too low to be considered as statistically significant (Table 2).
The present study confirms our earlier findings that CAA and CAMA are the main causes of occurrence of different cerebrovascular lesions in mixed AD brains.18,19 However, now we have also differentiated the impact of these lesions between AD-CAA and AD-CAMA, with a more severe cerebrovascular burden in the former group. In addition, it is shown that lacunar infarcts are more frequent in the AD-CAMA group, as already demonstrated in pure vascular dementia brains.20 Lacunar infarcts are mainly observed in the centrum semiovale.21
Lewy body pathology is associated with AD in 25% of cases.22 As previously shown in the unmixed LBD, an increase of cortical micro-infarcts and cortical micro-bleeds in the mixed AD-LBD group is observed.19 The cortical micro-infarcts are more frequent in the occipital section and the cortical micro-bleeds mainly in the frontal section. These results are different from those observed in a clinical study with 3.0-tesla MRI, in which cortical micro-bleeds are more frequently observed in the occipital lobes.23 The impact of associated CAA is limited to a further increase of cortical micro-infarcts in the frontal sections.24 The moderate amount of superficial siderosis, observed in the AD-CAA brains, is related to underlying cortical haemorrhagic or ischaemic lesions.25 Superficial siderosis is now included in the Boston criteria for CAA.26 AD-CAA brains have less severe cerebrovascular lesions than in unmixed CAA, probably due to some protective effect of the neurodegenerative disease.27 Ultimately, the clinical influence of co-occurring pathologies on disease progression mainly depends on the severity of the AD pathology.28
